ID: 0479
DATE: 2018/06/07

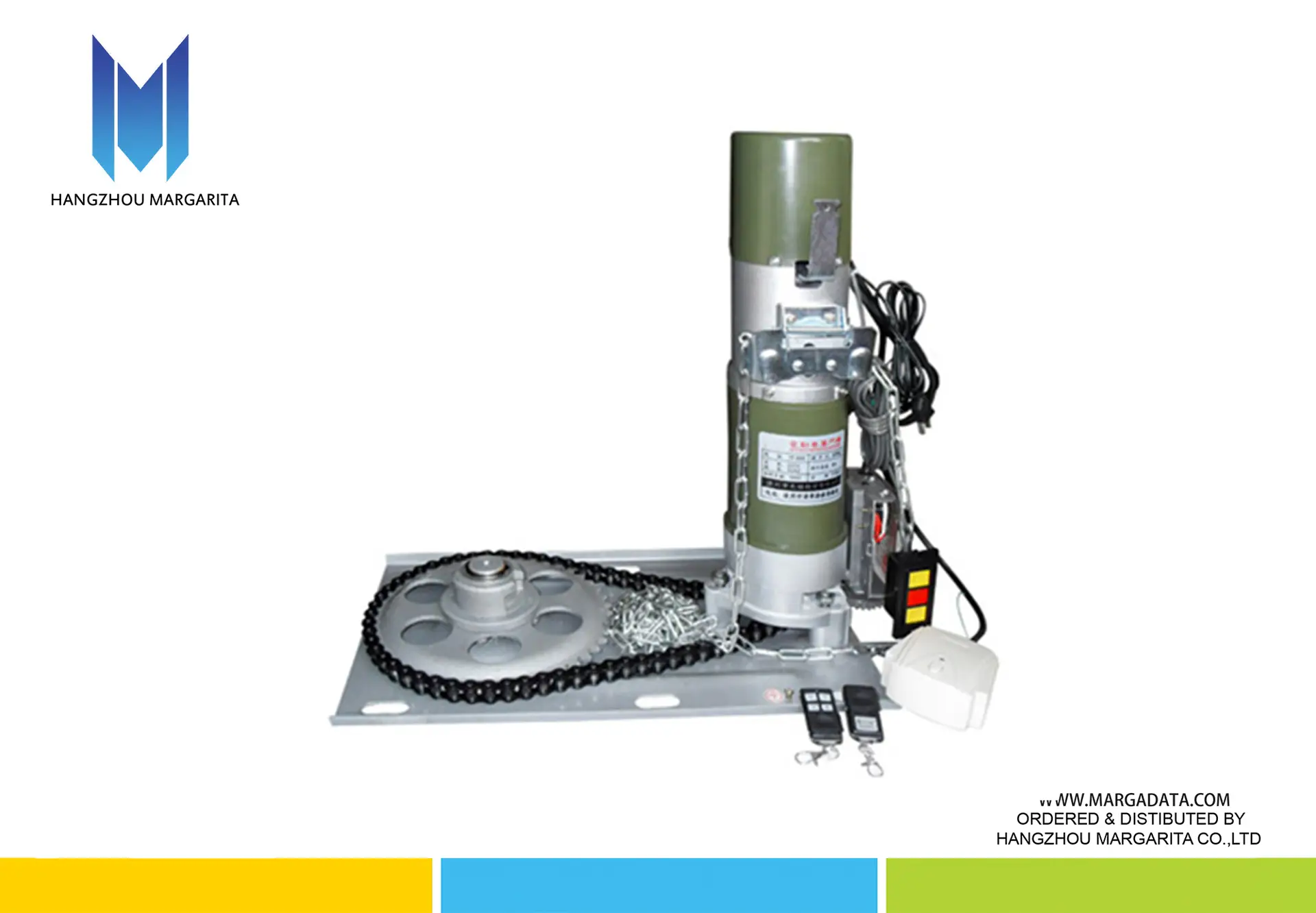

GOODS NAME: Rolling Door Motor
HS CODE: 84798990.00
DETAILS:
The Rolling Door Motors are well used for the garage door, industrial doors, rolling shutters involving the residential, commercial and industrial sectors.With electrical and manual functionl.
Feature
1) Shell: Aluminium alloy , solid and light but durable and easy to install.
2) Low noise: low energy consumption, small vibration.
3) Limit System: Correct control , easy operation , and big control range.
4) It outs with remote control.
Technical Parameter
| Model No. | Max lifting
Height(M) | Max Lifting
Weight(kg) | Rated
Power(W) | Rotated
Speed (R/min) | Chain No.
|
Output Torque
(N.M)
| Continuous
working
time (Min) |
| Single Phase Motor 220V/50HZ |
AC300KG | 6.5 | 300 | 250 | 6.2 | 10A | 168 | 6 |
AC500KG | 6.5 | 500 | 250 | 6.2 | 10A | 343 | 6 |
AC600KG | 6.5 | 600 | 370 | 6.2 | 10A | 412 | 6 |
AC800KG | 7.0 | 800 | 370 | 3.4 | 10A | 607 | 6 |
AC1000KG | 7.0 | 1000 | 400 | 3.2 | 10A | 1102 | 6 |
